Milesight® AM100 Series

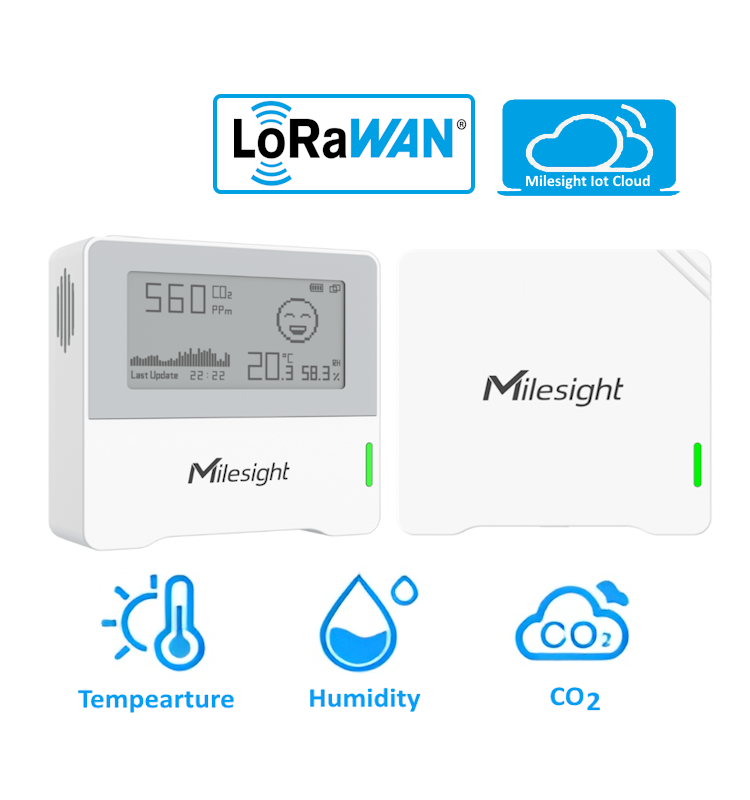

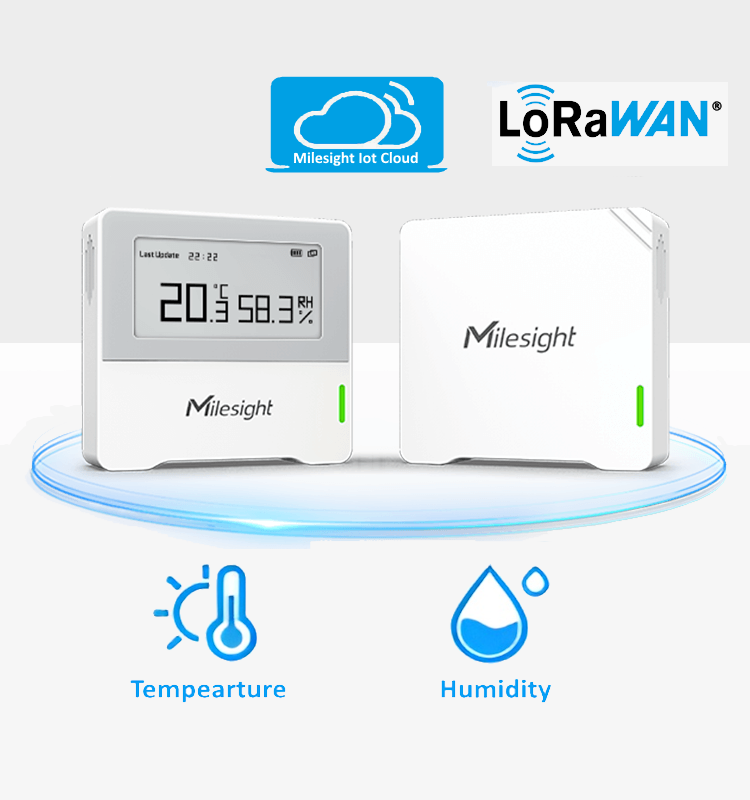

Milesight® AM10x Compact Indoor Ambience Sensor For Smart Buildings

Key Features

• Temperature Sensor:  -20°C ~ 60°C range with ± 0.2°C accuracy
• Humidity Sensor: 0% ~ 100% RH with ± 2% RH accuracy
• CO2 Sensor (AM103/103L):  Nondispersive Infrared (NDIR) sensor; 400 ~5,000 ppm range, ± 30ppm + 3% of reading accuracy (0°C to +50°C)
• Cloud-based Data Reporting: Scalable for large deployment (1000+ devices per site) **
• Long-Range Wireless Data Transmission: 2~15 km*

• Threshold-Based Alerts: Supports over-threshold alarm notifications via emails
• 2.13-Inch E-ink Display: (AM102/AM103 only)
• Color LED Status Indicator: Provides clear and intuitive visual feedback
• Wire-Free Installation: No wiring required
• NFC-Enabled Setup: Easy configuration via mobile app
• Ultra-Low Power Hibernation Mode: (AM102/AM103 only)

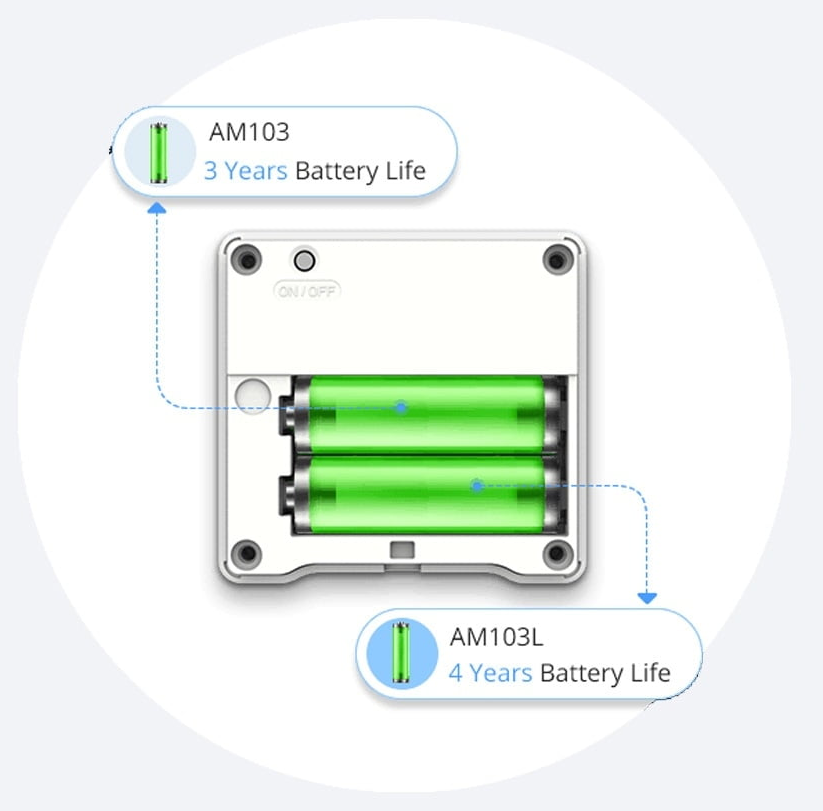

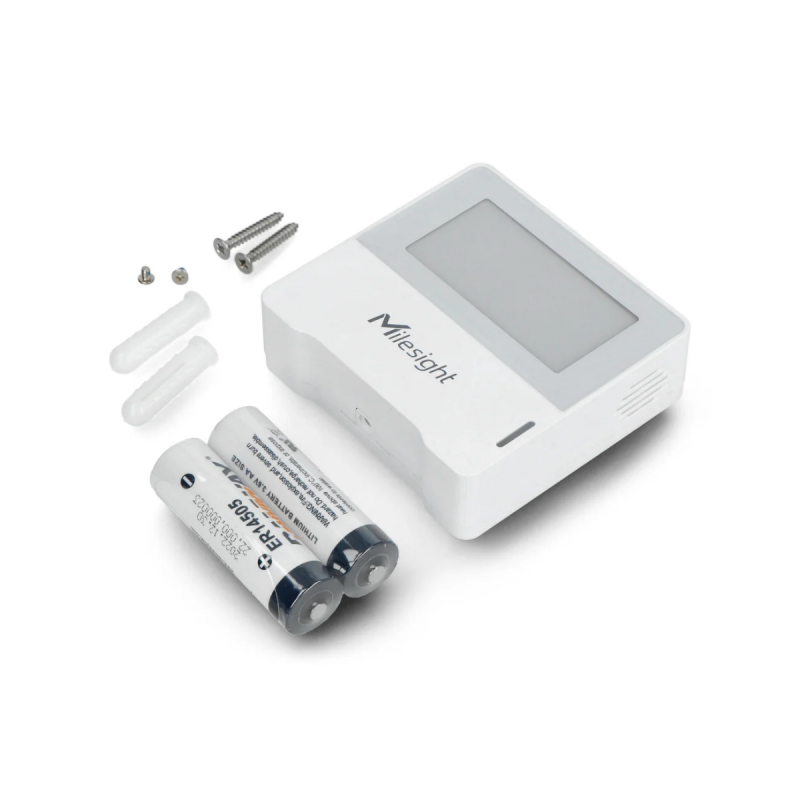

• Replaceable Batteries: Powered by 2× ER14505 Li-SOCl₂ cells
• Extended Battery Life: About 7/ 9 years for AM102 /AM102L
  About 3/4 years for AM103/AM103L


• Versatile Applications: Ideal for offices, hospitals, senior care facilities, and schools

  * LoRaWAN-based wireless communication. Range up to 2 km in urban environment and 15 km in open rural areas.
  ** Milesight® or compatible LoRaWAN gateways required. Milesight® products support open-standard protocols, enabling custom development by end users. A subscription-based cloud platform is also available. Please contact CMI Tech for more details.
