Milesight® UG65 LoRaWAN Gateway
Milesight® UG65 LoRaWAN Gateway
Couldn't load pickup availability

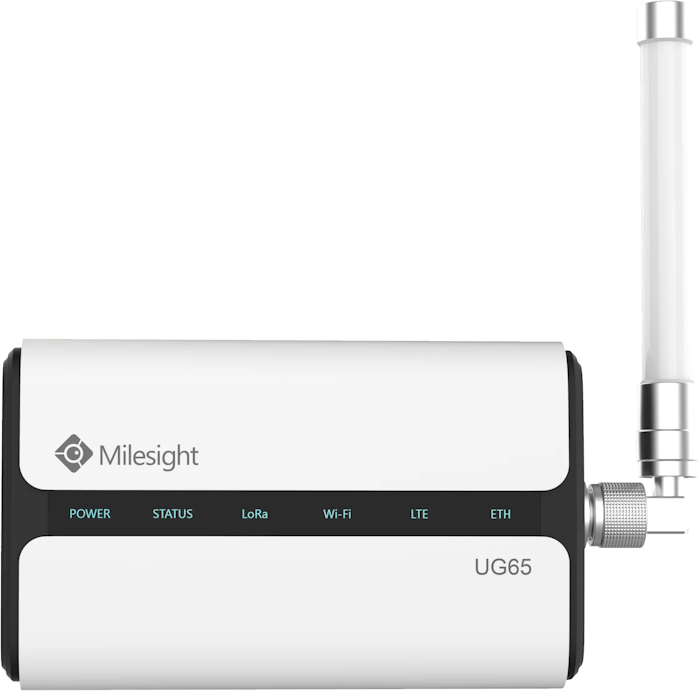

The Milesight® UG65 is a robust 8-channel indoor LoRaWAN® gateway designed for a wide range of indoor IoT applications, including smart offices and smart buildings. It stands out with its semi-rugged light-industrial design, quad-core CPU and the advanced SX1302 LoRa chip, enabling it to connect with over 2,000 nodes efficiently and with low power consumption.
This gateway offers impressive coverage, boasting a range of 15 km in open rural area and effective urban area coverage of approximately 2 km. Its versatile connectivity options, including Ethernet, Wi-Fi, and optional cellular (4G/3G) backhaul, ensure reliable data transmission. For ease of deployment and management, the UG65 integrates with mainstream network servers like The Things Stack and ChirpStack, and also features a built-in network server and connectivity to Milesight® IoT Cloud.
Key Features
- High Performance: Equipped with a quad-core 1.5 GHz 64-bit ARM Cortex-A53 processor and SX1302 LoRa chip for efficient data handling.
- Extensive Node Support: Capable of connecting with more than 2,000 LoRaWAN® end devices.
- 8 Channels: Supports 8 Half/Full-duplex LoRaWAN® channels for high traffic capacity.
- Multiple Backhaul Options: Offers Ethernet, Wi-Fi (2.4GHz), and optional cellular (4G/3G) connectivity.
- Integrated Network Servers: Features a built-in network server and compatibility with popular third-party network servers (e.g., The Things Stack, ChirpStack).
- Cloud Management: Seamless integration with Milesight® DeviceHub and Milesight® IoT Cloud for centralized device management.
- Robust Security: Supports multiple VPN tunnels including IPsec, OpenVPN, L2TP, PPTP, GRE, and DMVPN.
- Light-industrial Design: IP65 rated enclosure makes it suitable for sheltered outdoor environments.
- Flexible Installation: Supports desktop, wall, or pole mounting.
- Easy Integration: Provides MQTT(s) and HTTP(s) API, and includes embedded Python SDK and Node-RED for customized end-user development.
- Noise Analysis: Ability to detect and analyze noise levels to assist with optimal deployment.
- Protocol Support: Supports BACnet/IP and Modbus for industrial integration.
Specifications
| Category | Specification |
|---|---|
| System Hardware | |
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN® | |
| Channels | 8 (Half/Full-duplex) |
| Frequency Band | 915MHz (U.S. & Canada） |
| Sensitivity | -140dBm @292bps |
| Output Power | 27dBm Max |
| Antenna | 2 × Internal Antennas (Optional: 1 × 50 Ω N-Female External Connector) |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Ethernet Interface | |
| Port | 1 × RJ45 WAN Port (PoE PD supported) |
| Data Rate | 10/100/1000 Mbps (Auto-Sensing) |
| Wi-Fi Interface | |
| Standards | IEEE 802.11 b/g/n, 2.4GHz |
| Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) |
| Cellular Interface (Optional) | |
| Network | 4G LTE |
| SIM Slot | 1 (mini SIM-2FF) |
| Others | |
| Reset Button | 1x RST |
| USB | 1 × USB-C for Power Supply and Console |
| LED Indicators | 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH |
| Power Connector | 1 × DC Male Jack Connector (2.1 x 5.5 mm) |
| Built-in | Watchdog; RTC; Timer |
| Power Supply & Consumption | |
| Power Input | 1) 9-24 VDC by DC Jack, or 2) 802.3af PoE, or 3) 5V/1A by USB-C |
| Power Consumption | Typical 2.9 W, Max 4.2 W |
| Physical Characteristics | |
| Ingress Protection | IP65 |
| Material | PC+ABS (UL94 V0 Flame Retardancy) |
| Dimensions | 180 x 110 x 56.5 mm (7.09 x 4.33 x 2.19 in) |
| Mounting | Desktop, Wall, or Pole Mounting |
| Environmental | |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) Reduced Cellular Performance at Above 60°C |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77°F |
| Approvals | |
| Regulatory | CE, FCC, IC, TELEC, JATE, RCM |
| Environmental | RoHS, REACH |
