Milesight Temperature Probe / Door Sensor for TS300 Series

Milesight Temperature Probe / Door Sensor for TS300 Series

Application
$19.00 CAD
$19.00 CAD
Sale Sold out
Shipping calculated at checkout.

PT100 Temperature Probe / Door Sensor

Model Features Measurement Installation
PT100 Temperature Probes

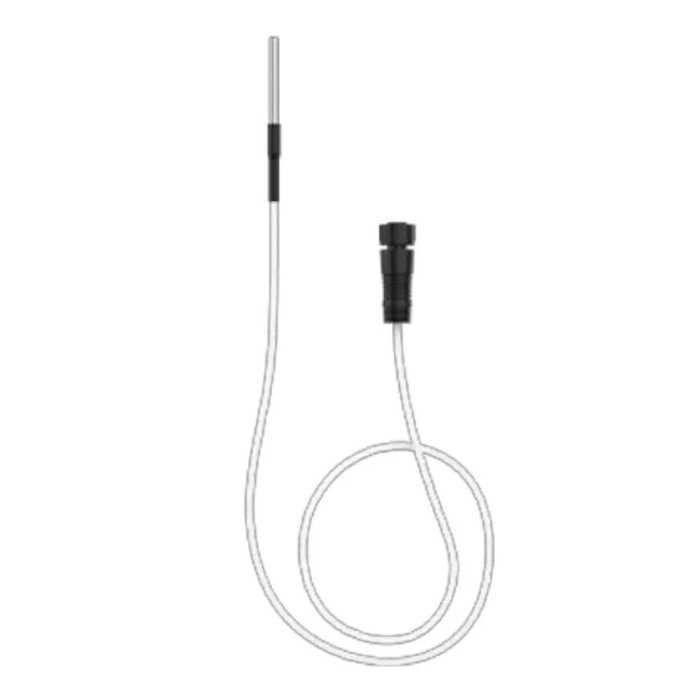

SP11-B05-125-200
(Standard)

Probe:
304 Stainless
Steel Straight Tube, Φ4x 50 mm, IP67

Cable:
2m PVC

IP67 Rated

Range:
-40 ~ 125°C

Accuracy：
± 0.5°C (-40°C~40°C);
±1°C (40°C~125°C)


 Contact;

Thermal Buffer
Bottle Installation(Opt.)

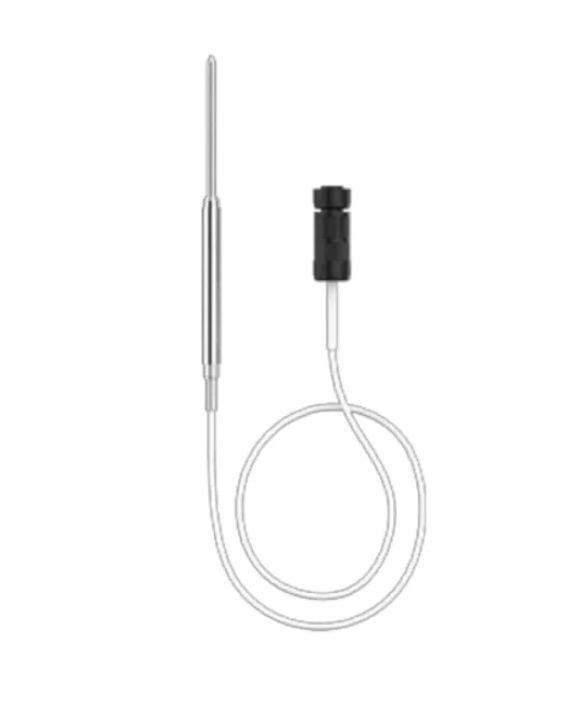

SP11- AF10-125-150
(Food Grade)

Probe:
316 Stainless Steel Needle (Food-Grade), Φ4x 100 mm, IP67

Cable: 1.5m Silicone (Food-Grade)

Range:
-40 ~ 125°C

Accuracy：
± 0.4°C

 Direct Insert

SP11-A03-050-150
(Low Temperature)

Probe:
304 Stainless
Steel Straight Tube, Φ4x 30 mm, IP67

Cable:
1.5m Teflon, (-200°C~290°C)

Range:
-200 °C ~ 50 °C

Accuracy:
± 0.5°C (-175°C~50°C),
±0.55°C (-200°C~-175°C)

 Contact
SP11-A05-500-150
(Industrial)		 Probe:
304 Stainless
Steel Straight Tube, Φ4x 30 mm, IP30

Cable:
1.5m fiber glass (-50°C~500°C)


 Range:
-50 ~ 500°C

Accuracy:
± 0.4°C (-50°C~125°C),

± 1.15°C (-125°C~500°C)		 Contact
SP11-A09-085-200-B046
(Pipe Monitoring)

Probe:
304 Stainless
Steel Straight Tube (with Baffle) , Φ4.8 x 90 mm, IP30

Cable:
2m PVC
(-20°C~85°C)

Range:
-20°C ~ 85°C

Accuracy:
± 0.4°C

 Baffle Screw Installation
(Baffle: 46*14mm)

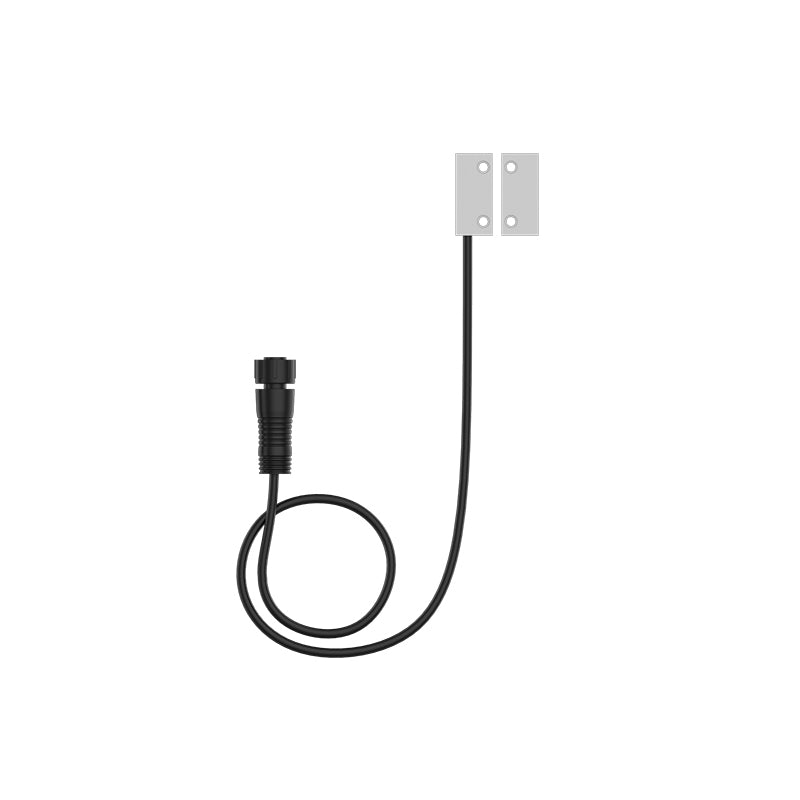

Magnetic Door Sensor
SS21-PN03-150

Feature:
Detect Door Open/Close

Cable:
length: 1.5m

Detection Range:
20-30 mm

 Wall Screw Mounting;
3M Tape Mounting
